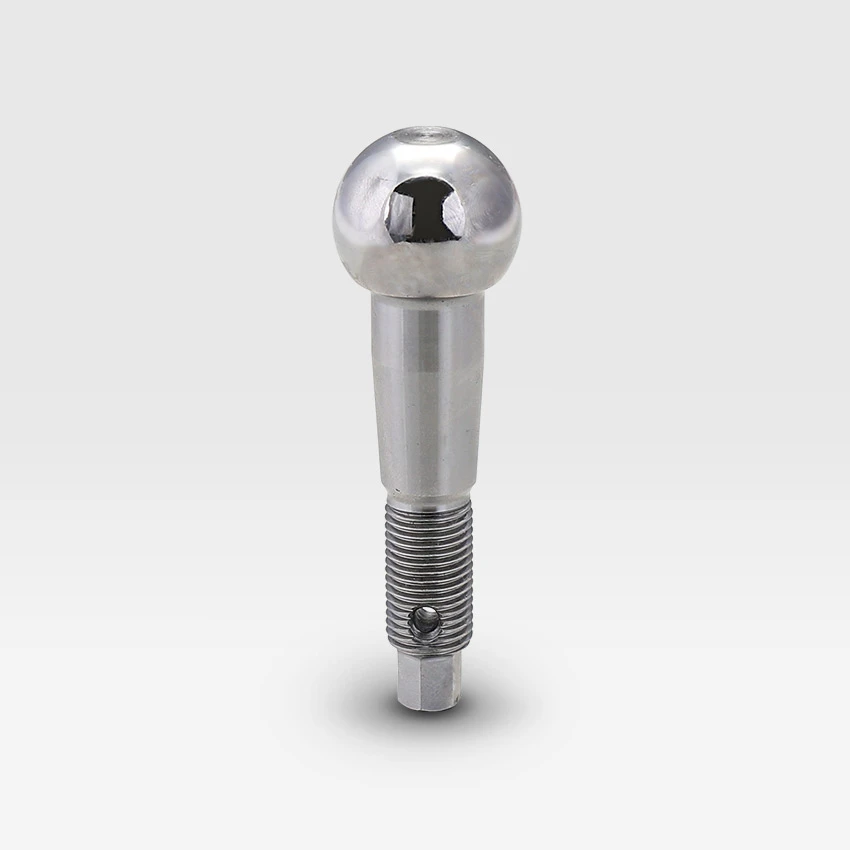

Our Ball Stud with Hex Tip is engineered to eliminate the common installation headaches associated with traditional automotive steering and suspension assemblies. Featuring a high-precision internal or external hex drive at the tip of the shank, this unique Ball Stud with Hex Tip allows mechanics to secure the component using standard Allen keys or hex wrenches, completely preventing the stud from rotating during high-torque tightening. This simple yet highly effective design significantly speeds up assembly line production and aftermarket maintenance, making it an incredibly popular selection for stabilizer linkage and steering knuckle systems worldwide.

We manufacture each Ball Stud with Hex Tip using advanced multi-station cold heading and high-speed CNC turning machines inside our 10,000 square meter facility. Backed by our IATF 16949:2016 certification and a workforce of over 200 skilled specialists, we maintain a massive monthly production capacity of up to 1,000,000 units. To guarantee the structural integrity of the hex geometry, we apply localized heat treatment that prevents rounding or stripping under high-torque pneumatic assembly. Our overseas partners consistently report that this specific design reduces assembly line downtime and improves installation safety.

Technical Specifications

Tip Configuration	Integrated internal hex socket or external hex drive (customizable sizes)
Thread Type	Precision rolled external threads with anti-galling coatings
Material	High-tensile 40Cr structural steel or custom carbon alloy
Core Hardness	28-34 HRC to resist high shear stresses
Salt Spray Resistance	Minimum 240 hours without white rust, customizable up to 720 hours

Application Areas

Sway Bar Links

Installed directly on front and rear stabilizer bars to manage chassis twist.

Independent Suspensions

Connects control arms to structural suspension components requiring anti-rotation tools.

Control Valve Linkages

Used in specialized heavy-duty air suspension level valves and linkage systems.

Customization Capabilities

As an engineering-driven factory with over 12 years of industry depth, we provide complete tailored solutions for our global partners. If your assembly requires a specialized hex size or specific torque parameters, our 20-person engineering department can design, simulate, and prototype the custom Ball Stud with Hex Tip to meet your specifications. Custom sample development takes only 7 to 15 business days, and the initial sample cost can be fully credited toward your first bulk mass production order.

Packaging & Shipping

Inner Protection

Individually sealed in anti-scratch plastic film, nested in customized grid dividers to prevent metal-on-metal impact during transit.

Outer Packing

Standardized 5-layer corrugated boxes, reinforced with outer nylon straps, and stacked on export-compliant, fumigated wooden crates.

Logistics Options

Supports EXW (factory pick-up), FOB (Chinese ports), and door-to-door DDP (inclusive of import duties and local warehouse delivery).

FAQ

Q1: Does the hex tip feature localized hardening to prevent stripping during pneumatic installation?

A: Yes, the hex tip undergoes specialized induction tempering to elevate its surface hardness, ensuring that professional pneumatic tools will not slip or strip the hex socket during high-speed assembly.

Q2: What is your standard lead time for a bulk order of this specific hex-tip design?

A: For standard dimensions, our lead time is 15-20 working days. For custom dimensions requiring specialized tooling, the lead time is typically 30-45 working days, managed via a clear milestone schedule.
