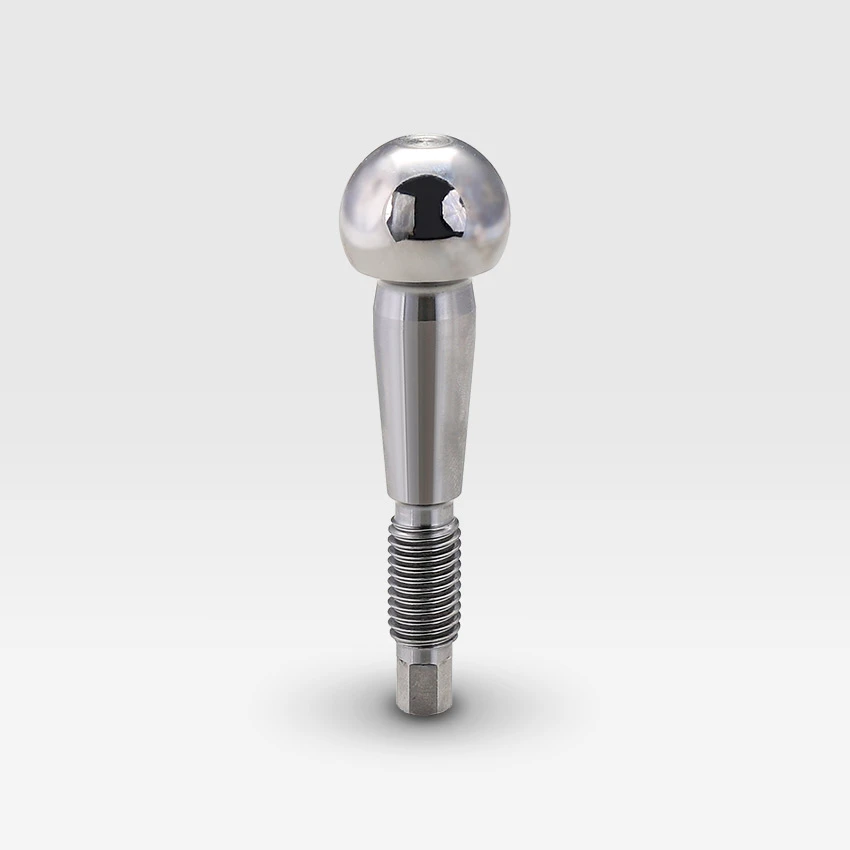

Engineered to deliver a flawless mechanical fit in critical steering steering knuckles and front shock towers, our Tapered Ball Stud with Hex End offers the ultimate in joint security. This specialized Tapered Ball Stud with Hex End features a precision-machined tapered shank that guarantees a tight self-centering wedge-fit when pulled into a matching tapered housing. To facilitate rapid, high-torque tightening without shank rotation, the threaded end of the stud is finished with a robust hex drive socket. This design is highly favored by global suspension brand owners and professional mechanics for its ease of installation and high structural integrity.

We manufacture each Tapered Ball Stud with Hex End using premium alloy steels inside our advanced 10,000 square meter factory. Our IATF 16949 quality system dictates rigorous inspection of the taper angle, as even a minor deviation can cause loose joints or catastrophic failure on the road. Utilizing advanced CNC grinding centers, we achieve taper tolerances within microns, ensuring 100% surface contact with the knuckle assembly. Backed by our 12+ years of automotive manufacturing experience, we deliver suspension hardware that stands up to the roughest road conditions.

Technical Specifications

Taper Ratio	Standard ratios (such as 1:8, 1:10) or custom taper angles ground to micron tolerances
Hex End Socket	Deep internal or external hex drive to assist high-torque locking
Material	High-tensile 40Cr structural alloy steel
Heat Treatment	Carburized or localized induction hardened on the taper and ball head (55-62 HRC)
Plating	Salt spray resistant Zinc-Nickel, Geomet, or black electrophoresis

Application Areas

Steering Tie Rod Ends

Connects outer tie rods securely to steering knuckles with a non-slip wedge-fit.

Front Shock Tower Mounts

Anchors shock absorbers to the front chassis to resist centrifugal torsion during cornering.

Control Arms

Serves as the main pivot joint in heavy-duty wishbone and multi-link suspensions.

Customization Capabilities

Our dedicated R&D team of 20+ professional engineers can reproduce complex taper profiles from your physical prototypes or technical drawings. Whether you require a specialized taper ratio, a custom hex tip size, or customized thread pitches, we can deliver physical samples in 7 to 15 working days. For brand-new custom components, we manage the complete mold design and manufacturing process in-house.

Packaging & Shipping

Inner Protection

Individually sleeved with thick mesh plastic, coated in rust-proof oil, and packed in reinforced inner boxes to protect the taper surface.

Outer Packing

Placed in heavy-duty five-layer corrugated master cartons, secured with polypropylene banding, and shrink-wrapped on export pallets.

Shipping Terms

We fully support EXW, FOB, and hassle-free DDP door-to-door delivery with customs cleared and duties prepaid.

FAQ

Q1: Why is the taper tolerance so critical for this product?

A: A loose taper on the Tapered Ball Stud with Hex End can cause localized stress concentrations, leading to joint play or sudden failure. We grind every taper to exact micro-tolerances to guarantee a perfect wedge-fit.

Q2: Does your factory accept small trial orders for new clients?

A: While our standard mass production MOQ is 10,000 pieces, we are happy to support new clients with smaller initial trial orders to help you validate our quality in your local market.
